spindle 4061 AC-CS-TC
spindle 4061 AC-CS-TC
| Reference number | 1002 5587 |
|---|---|
| Speed | 25,000 rpm |
| Power | max. 2.800 W |
| Torque | max. 130 Ncm |
| Tool change | Pneumatic direct C4 (max. Ø 6.35 mm) |
spindle 4061 AC-CS-TC
| Application | Drilling, milling, grinding, engraving |
|---|---|

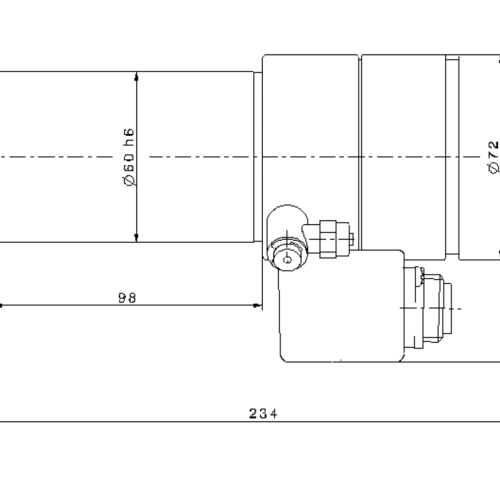

| Housing diameter | 60 mm |
| Motor system | Brushless DC motor (BLDC) |
| Speed range |
5,000 – 50,000 rpm |
| Frequency |
83–833 Hz |
| Voltage | 230 V |
| Current |
max. 7 A |
| Torque |
max. 80 Ncm |
| Power |
max. 1,800 W |
| Motor protection | PTC-100℃ |
| Weight | 4.0 kg |
| Bearing system |
3 x Hybrid, lifetime lubrication |
| Run-out (taper) | ≤ 1.5 µm |
| Chuck clamping range |
Ø 1.0 – 6.35 mm (incl. 1/8″ + 1/4″) |
| Chuck type | C4 |
| Collet stop | Yes |
| Tool change |
Pneumatic 5 – 6 bar |
| Cooling system |
Cooling via clamping bracket |
| Protection category | IP 54 |
| Protected against dirt and cooling lubricant |
Sealing air 0.5 – 0.8 bar |
| Housing material | Stainless steel |
| Sensoric | Temperature sensor motor |
| Cable / plug type |
M23 / M23-QL |
| Inverter recommendation |
e@syDrive® TV4538, 4638 |
