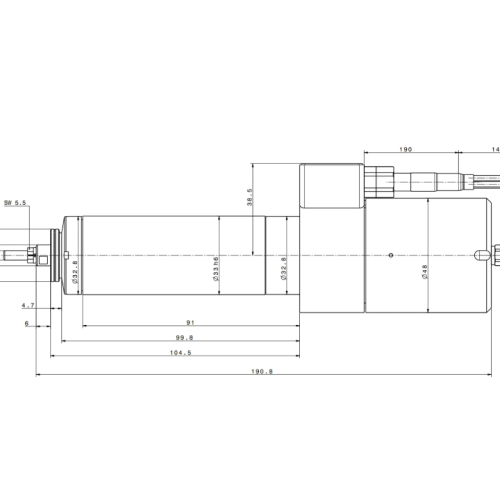

spindle 4033 AC-C3-100-04-LN6-EP4
spindle 4033 AC-C3-100-04-LN6-EP4
| Reference number | 2002 9789 |
|---|---|
| Speed | 100,000 rpm |
| Power | max. 500 W |
| Torque | max. 8,4 Ncm |
| Tool change | Pneumatic direct C3 (max. Ø 4 mm) |
spindle 4033 AC-C3-100-04-LN6-EP4
| Application | Drilling, milling, grinding, engraving |
|---|---|
| Housing diameter | 33 mm |
| Motor system | 3-phase asynchronous motor |
| Speed range | 6,000 – 100,000 rpm |
| Frequency | 100 – 1,666 Hz |
| Voltage | max. 49 V |
| Current | S1: 6.6 A, max. 8 A |
| Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
| Power | S1: 420 W, max. 500 W |
| Motor protection | KTY |
| Weight | 1.0 kg |
| Bearing system | 3 x hybrid, lifetime lubricated |
| Run-out (taper) | ≤ 1.0 µm |
| Chuck clamping range | Ø max. 4 mm |
| Chuck type | C3 |
| Collet stop | Yes |
| Tool change | Pneumatic Direct 5 – 6 bar Hose ∅ 4 mm |
| Taper cleaning | Yes |
| Cooling system | Cooling via clamping bracket |
| Protection category | IP 55/57 |
| Protected against dirt and cooling lubricant | Yes |
| Housing material | Stainless steel |
| Sensoric | Temperature sensor motor |
| Cable / plug type | 915 |
| Inverter recommendation | e@syDrive® 4310 (IP 00) e@syDrive® 4320 (IP 00) e@syDrive® 4624,4625,4626 e@syDrive® TV 4503 e@syDrive® TV 4504 e@syDrive® TV 4506 |
